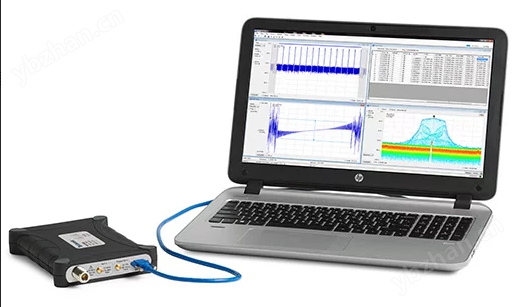

RSA306使用您的电脑和泰克SignalVu-PC™ RF 信号分析软件，为9 kHz ~ 6.2 GHz信号提供实时频谱分析、流式捕获和深入信号分析功能，而且价格经济，携带异常方便，特别适合现场、工厂或科研应用。
主要性能指标
9 kHz ~ 6.2 GHz 频率范围，满足各种分析需求
+20 dBm ~ -160 dBm 测量范围
Mil-Std 28800 Class 2 环境、撞击和振动规范，适用于严酷的条件
在 6.2 GHz 整个频宽中快速扫描 (每秒 2 次)，迅速检测未知信号
40 MHz采集带宽可以对现代标准执行宽带矢量分析
以99% 检测概率捕获持续时间最短 27 μs 的信号
主要特点
使用标配泰克 SignalVu-PC™ 软件，获得全功能频谱分析功能
17 种频谱和信号分析测量显示可支持几十种测量类型
地图绘制、调制分析、WLAN、LTE 和蓝牙标准选项支持脉冲测量、播放记录的文件、信号勘测和频率/相位稳定测量
EMC/EMI 预一致性测试和调试 - CISPR 检测器, 预定标准, 极限线, 简便设置附件, 环境特点捕获, 故障分析, 报告生成
DataVu-PC 软件能够在可变带宽中实现多台记录
实时频谱/ 三维频谱图显示，使查找瞬态信号和干扰的时间达到最小
标配应用编程接口 (API)，适用于 Microsoft Windows 环境
MATLAB 仪器驱动程序，用于仪器控制工具箱
流式捕捉技术，记录长期事件
三年保修
应用
学术/教育
工厂或现场维护、安装和维修
经济型设计和制造
搜寻干扰
RSA306B：一种全新的仪器类别
RSA306B提供了全功能频谱分析和深入的信号分析功能，任何以前的产品都无法比肩其价格。通过使用商用接口及计算能力，RSA306B把信号采集与测量分开，明显降低了仪器硬件的成本。数据分析、存储和重放都在电脑、平板电脑或笔记本电脑上进行。从采集硬件中单独管理PC，可以简便地升级计算机，限度地减少IT管理问题。
SignalVu-PC™软件和API，支持深入分析和快速编程交互
RSA306B运行SignalVu-PC，这一强大的程序是泰克高性能信号分析仪的基础。SignalVu-PC 提供了以前经济型解决方案中没有提供的深入分析功能。DPX 频谱/三维频谱图的实时处理在电脑中进行，进一步降低了硬件的成本。需要编程接入仪器的客户既可以选择SignalVu-PC 编程接口，也可以使用标配的应用编程接口(API)，其提供了一套丰富的命令和测量功能。.另外还为API 提供了MATLAB 驱动程序，可以与MATLAB 和仪器控制工具箱一起使用。
DataVu-PC 多仪器记录和分析软件，支持大型记录
DataVu-PC 软件可以使用独立设置同时控制两台频谱分析仪。您可以监测宽频宽，同时在仪器范围内任何频率上以 40 MHz 带宽记录数据。一旦记录完毕， DataVu-PC 可以根据幅度和频率模板特点查找和标记关注的信号，而不需要手动检查长记录。在最多 2,000,000 个脉冲上提供脉冲测量。
SignalVu-PC 基本版中包括的测量
免费的 SignalVu-PC 程序的基本功能远远不只是基本功能。下表概括了SignalVu-PC 免费软件中包括的测量。
RSA306 using your computer and teck SignalVu - PC ™ RF signal analysis software, to provide 9 kHz to 6.2 GHz signal spectrum analysis, real-time streaming capture and signal analysis function, and the price is economic, convenient carry the exception, especially suitable for on-site, factories or research applications.
Key performance indicators
9 kHz ~ 6.2 GHz frequency range, meet various analysis needs
+20 dBm ~ -160 dBm measurement range
Mil-std 28800 Class 2 environmental, impact and vibration specification for severe conditions
Rapid scanning (2 times per second) throughout the 6.2ghz bandwidth to quickly detect unknown signals
The 40 MHz acquisition bandwidth can perform broadbａnd vector analysis on modern standards
Capture signals with the shortest duration of 27 s at 99% detection probability
The main features
Use standard teck SignalVu - PC ™ software, get full spectrum analysis
The 17 spectrum and signal analysis measurements show support for dozens of measurement types
Mapping, modulation analysis, WLAN, LTE, and bluetooth standard options support pulse measurements, playback of recorded files, signal surveys, and frequency/phase stability measurements
EMC/EMI pre-conformance testing and debugging - CISPR detector, predetermined standard, limit line, easy setting of accessories, environmental characteristics capture, failure analysis, report generation
Datavu-pc software enables multiple records in variable bandwidth
Real-time spectrum / 3d spectrum display minimizes the time to search for transient signals and disturbances
Standard application programming interface (API) for Microsoft Windows environment
MATLAB instrument driver for instrument control toolbox
Streaming capture technology to record long-term events
Three years warranty
application
Academic/education
Factory or field maintenance, installation and repair
Economical design and manufacturing
Search for interference
RSA306B: a brａnd new instrument category
RSA306B offers full spectrum analysis and deep signal analysis capabilities that no previous product can match in price. By using the latest commercial interface and computing power, RSA306B separates signal acquisition from measurement, significantly reducing the cost of instrument hardware. Data analysis, storage, and playback are performed on a computer, tablet, or laptop. Managing the PC separately from the acquisition hardware makes IT easy to upgrade the computer and minimize IT management issues.
SignalVu - PC ™ software and API, and support the thorough analysis and rapid interaction programming
RSA306B runs signalvu-pc, a powerful program that is the basis for the tektronix high-performance signal analyzer. Signalvus-pc provides in-depth analysis capabilities not previously available in economic solutions. DPX / 3d spectrum is processed in real time in a computer, further reducing the cost of hardware. Signalvus-pc can be chosen by customers who want to program access to the instrument or the standard application programming interface (API), which provides a rich set of commands and measurements. . In addition, MATLAB driver is provided for API, which can be used together with MATLAB and instrument control toolbox.
Datavu-pc multi-instrument recording and analysis software, supporting large scale recording
The datavu-pc software can control two spectrum analyzers simultaneously using a separate setup. You can monitor broadbａnd while recording data at up to 40 MHz bandwidth at any frequency in the instrument range. Once the recording is complete, the datavu-pc can find and mark the signal of interest according to the characteristics of the amplitude and frequency template, without manual inspection of the long record. Provides pulse measurements on up to 2,000,000 pulses.
SignalVu- the measurement included in the PC base edition
The basic functionality of the free signalvus-pc program goes far beyond basic functionality. The table below summarizes the measurements included in the signalvus-pc free software.
