CE(欧标)卷筒电缆
CE (European Standard) Drum Cable
特点:
优异的耐磨损,耐撕裂特性
具有良好的抗拉性(加钢丝和高强度棉绳),又保持柔软性。
耐弯曲、耐磨、耐油、抗紫外线(不开裂)。
能在低温环境下正常使用,良好的耐寒性。
使用寿命:是橡套电缆的4~5倍的使用寿命。
Features:
Excellent wear resistance and tear resistance characteristics
It has good tensile strength (with steel wire and high-strength cotton rope) while maintaining softness.
Resistant to bending, wear, oil, and UV rays (without cracking).
Can be used normally in low temperature environments, with good cold resistance.
Service life: 4-5 times the service life of rubber sheathed cables.
CE(欧标)卷筒电缆
CE (European Standard) Drum Cable
结构:
导 体:多股精绞耐折弯无氧铜丝。遵循VDE-0295 Cl-5或6, IEC 60228/HD383 Cl-5或6
绝 缘:特殊混合橡胶弹性体柔软绝缘。黑色线芯或数字标示(如需黄绿接地线请说明)
加 强 件:镀锌钢丝绳、进口芳纶纱、抗拉旗杆绳以及多股黄麻绳等(可选)
内 护 套:混合橡胶弹性体。
双护套中间加高密度芳纶编制抗拉。
护 套:耐油阻燃耐候混合橡胶弹性体专用护套料。黑色或灰色(也可按需定制)

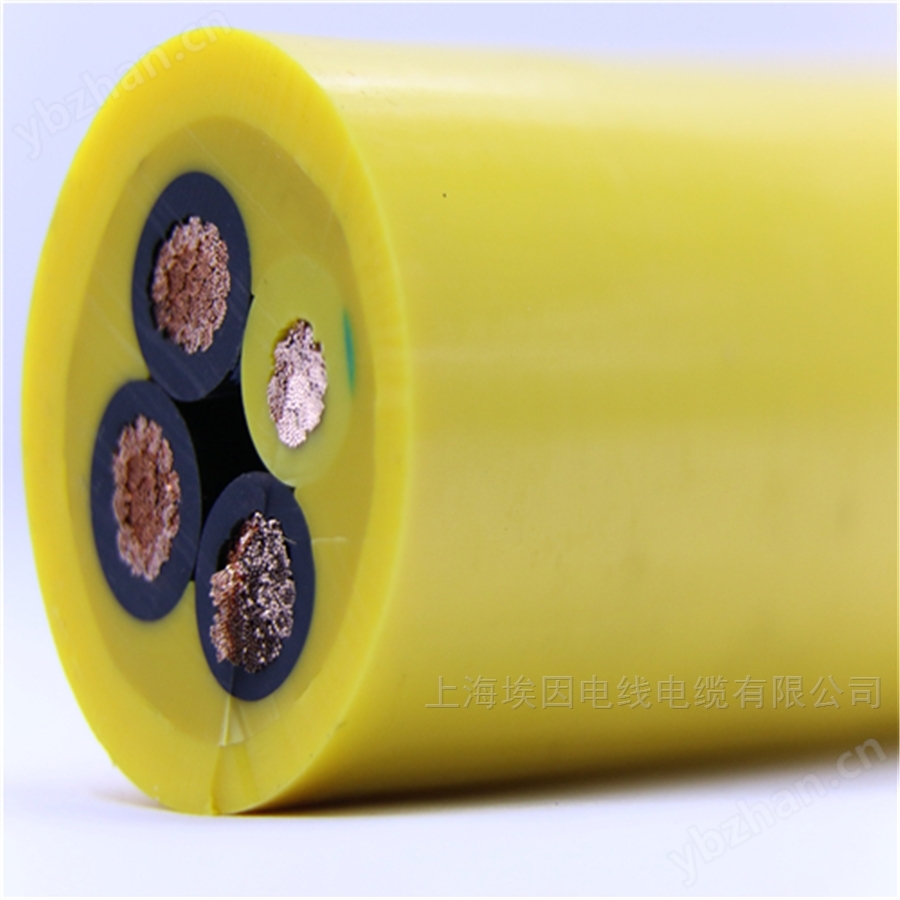

Structure:
Conductor: Multi strand precision twisted bend resistant oxygen free copper wire. Follow VDE-0295 Cl-5 or 6, IEC 60228/HD383 Cl-5 or 6
Insulation: Special mixed rubber elastomer for soft insulation. Black core or numerical indication (please specify if yellow green grounding wire is required)
Reinforcement: galvanized steel wire rope, imported aramid yarn, tensile flagpole rope, and multi strand jute rope (optional)
Inner sheath: mixed rubber elastomer.
Add high-density aramid fiber to the middle of the double sheath for tensile strength.
Sheath: Oil resistant, flame retardant, and weather resistant mixed rubber elastomer special sheath material. Black or gray (also customizable as needed)
