| 产品特性：网卡 | 是否进口：是 | 原产国/地区：美国 |
| 加工定制：否 | 品牌：MEDIA I/Os | 型号：FAST-2200SC-SM |
| 产品用途：宽带光纤网络接口卡 |
MEDIA I/O光纤网络接口卡100BASE以太网卡（FAST-2200SC-SM 光纤网络接口卡 MEDIA I/O 100BASE-FX以太网卡）
品牌：MEDIA I/Os
类别：光纤网络接口卡
型号：FAST-2200SC-SM
MEDIA I/O光纤网络接口卡100BASE以太网卡产品简介：

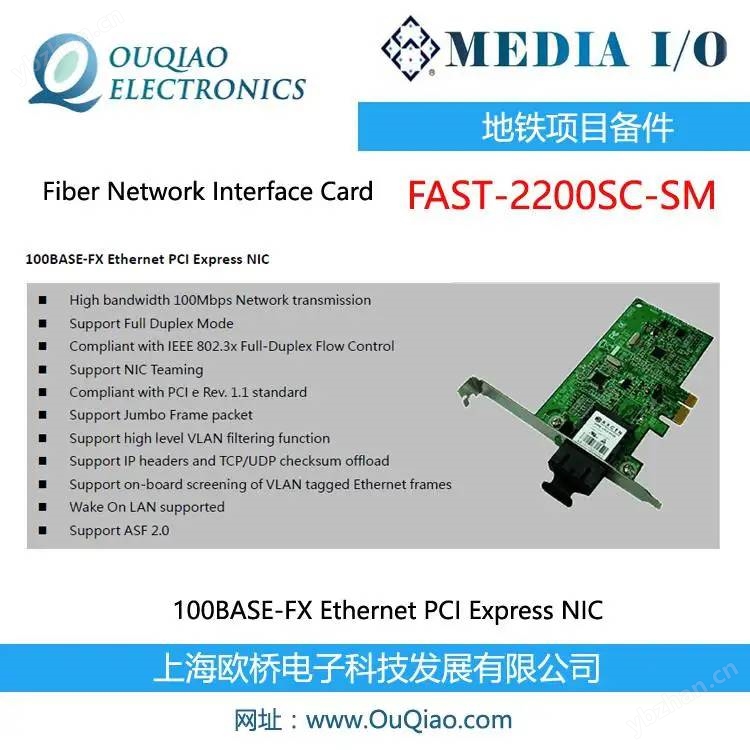

100BASE-FX Ethernet PCI Express NIC
High bandwidth 100Mbps Network transmission
Support Full Duplex Mode
Compliant with IEEE 802.3x Full-Duplex Flow Control
Support NIC Teaming
Compliant with PCI e Rev. 1.1 standard
Support Jumbo Frame packet
Support high level VLAN filtering function
Support IP headers and TCP/UDP checksum offload
Support on-board screening of VLAN tagged Ethernet frames
Wake On LAN supported
Support ASF 2.0
产品参数：
Specification
Standards IEEE 802.3u Fast Ethernet 100Base-FX, IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLANs
Connector:1310nm SC, single-mode
Fiber Optic Cable:62.5/125, 50/125mm multi-mode, 9/125mm single-mode
Data Transfer Mode/Speed:Full duplex with flow control 100Mbps speed
Diagnostics LED:LINK/ACT, FDX
Operating System:Windows 98/ME/2003 Server/2008 Server/XP/7/10; Novell Netware 5.x, 6.x; Linux;PXE & RPL Boot ROM
PCI bus slot:PCI-E 1.1
Operating Temperature/Humid:0° to 50°C / 5% to 90%
Power Input:Max. 5.24W, + 3.3VDC@ 1.5 0.7A
Dimension / Weight:108(L) x 68.5(H) mm/0.05Kg
Safety:Comply with FCC Part 15 Class B & CE Mark Approval
EMI:EN55022:1998+A1:2000+A2:2003,Class B; EN61000-3-2:2000; EN61000-3-3:1995+A1:2001
FAST-2200SC-SM : 100BASE-FX Ethernet PCI Express NIC, SC Single Mode 20KM
