产品特点：
1. 操作方便，高可靠性;

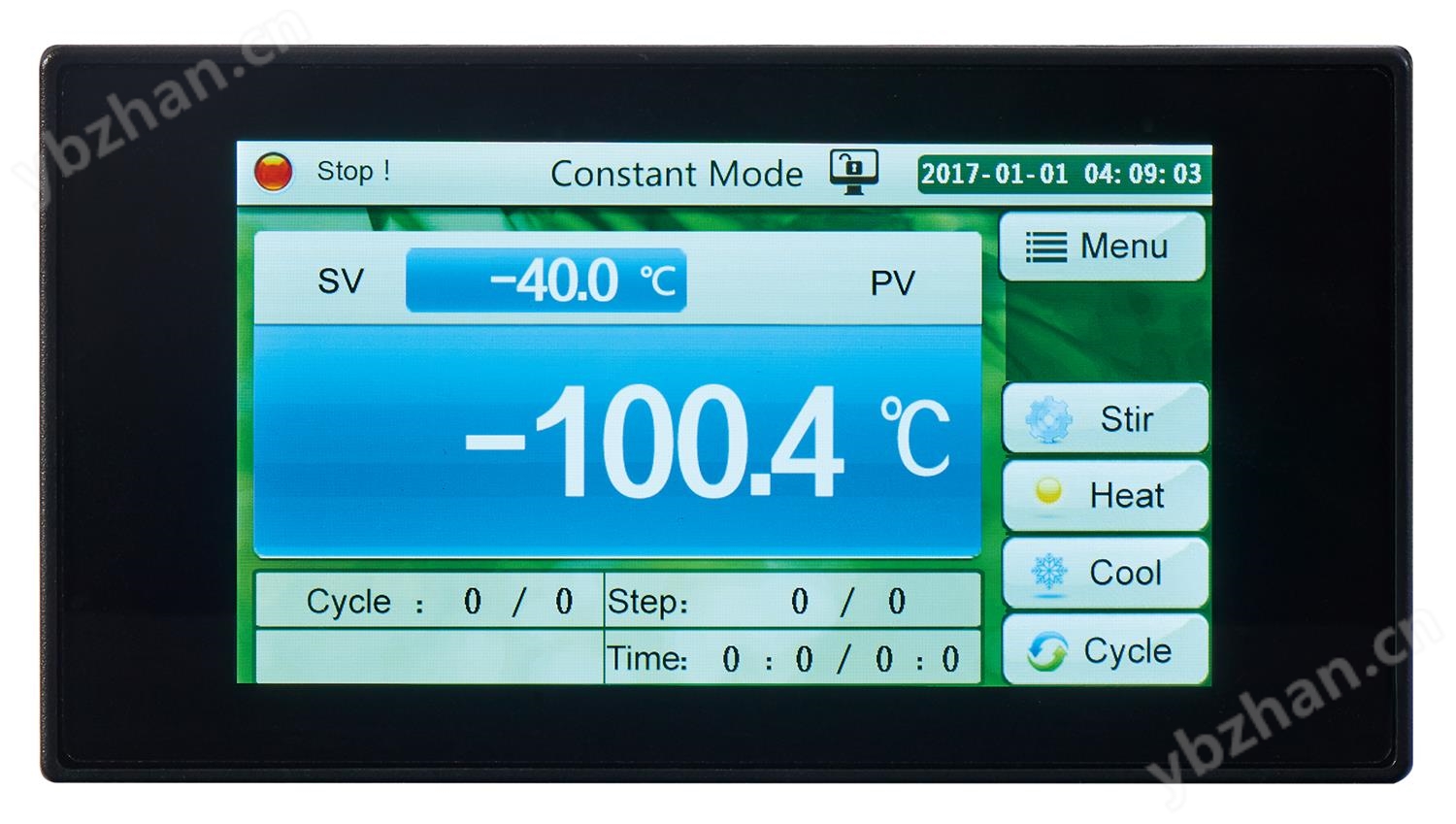

2. 可拓展高分辨率触摸屏，界面美观大方，多组数据一屏显示，操作方便，中英文可选；
3. 智能模糊PID控制，控制精度高，可拓展多段编程控制；
4. 有温度自整定功能，有多组PID控制，有多段温度偏差修正；
5. 可拓展复叠制冷和多种温度控制对象选择功能；
6. 控制精度可拓展0.001高精度测控；
7. 具备预约运行功能、计时功能和掉电记忆功能；
8. 控制器具有屏幕锁定功能，避免人为触摸操作失误；
9. 可拓展实时曲线查看和历史数据存储与导出功能，远程通讯及U盘、打印机等功能。
Product features:
1. Easy to operate, high reliability;
2. Expandable high-resolution touch screen,aesthetic and elegant interface, multiple sets of data displayed on one screen, easy to operate, multiple sizes ａnd Chinese and English language optional;
3. Intelligent fuzzy PID control with high control accuracy and expandable multi-segment programming control;
4.Temperature auto-tuning function, multiple PID control groups, and multi-segment temperature deviation correction;
5. It can be expanded with compound cooling and multiple temperature control object selection function;
6. Control accuracy can be expanded to 0.001 high precision measurement and control;
7. It has the function of appointment running, timing and power-off memory;
8. The controller has screen locking function to avoid misoperation;
9. It has functions of real-time curve view, historical data storage and export, and can be extended to remote communication, USB flash disk, printer and other functions..
技术参数Technical parameter：
产品名称 Product name | 高精度低温控制器 High precision cryogenic controller |
产品型号 Product model | DSD-D5006-T | DXH-D6006-T | DXH-D2006(5006)-T | DRHP-T1006-T |
显示方式 Display mode | 笔段液晶 VA LCD | 5寸IPS触摸屏 5" IPS touch screen |
安装尺寸 Installation size | 91.5mm*91.5mm | 裸板 Bare plate | 裸板 Bare plate | 143mm*74.8mm |
显示分辨率 Display resolution | 0.01 | 0.001 | 0.1/0.01 | 0.1/0.01 |
控制范围 Control range | -90.00～300.00℃ | -120.000～200.000℃/ -40.000～300.000℃ | -120.0～200.0℃/ -40.0～300.0℃ | -120.00～300.00℃ |
控温精度 Temperature control accuracy | ±0.05 | ±0.005 | ±0.05 | ±0.05 |
计时范围 Timing range | 0-9999分钟（小时） 0~9999 Minutes/Hours |
输出容量 Output capacity | 加热可控硅≤8A；加热外接固态：DC12V,30mA 制冷继电器≤8A； 其他继电器≤3A； Heat SCR≤8A；Heat SSR：DC12V,30mA Refrigeration relay≤8A Other relay≤3A； | 加热外接固态：DC12V,30mA 制冷继电器≤8A； 制冷外接固态：DC12V,30mA 其他继电器≤3A； Heat SSR：DC12V,30mA Refrigeration relay ≤8A; Refrigeration SSR：DC12V,30mA Other relay≤3A； |
电源电压 Supply voltage | 100～240VAC/50～60Hz |
工作环境 Working condition | 环境温度：-10～60℃ 相对湿度：< 90%RH（不结露） Environment temperature：-10～60℃ Relative humidity：< 90%RH (No dew)
|
