setra西特26P差压传感器资料和型号大全

SETRA西特26P差压传感器变送器

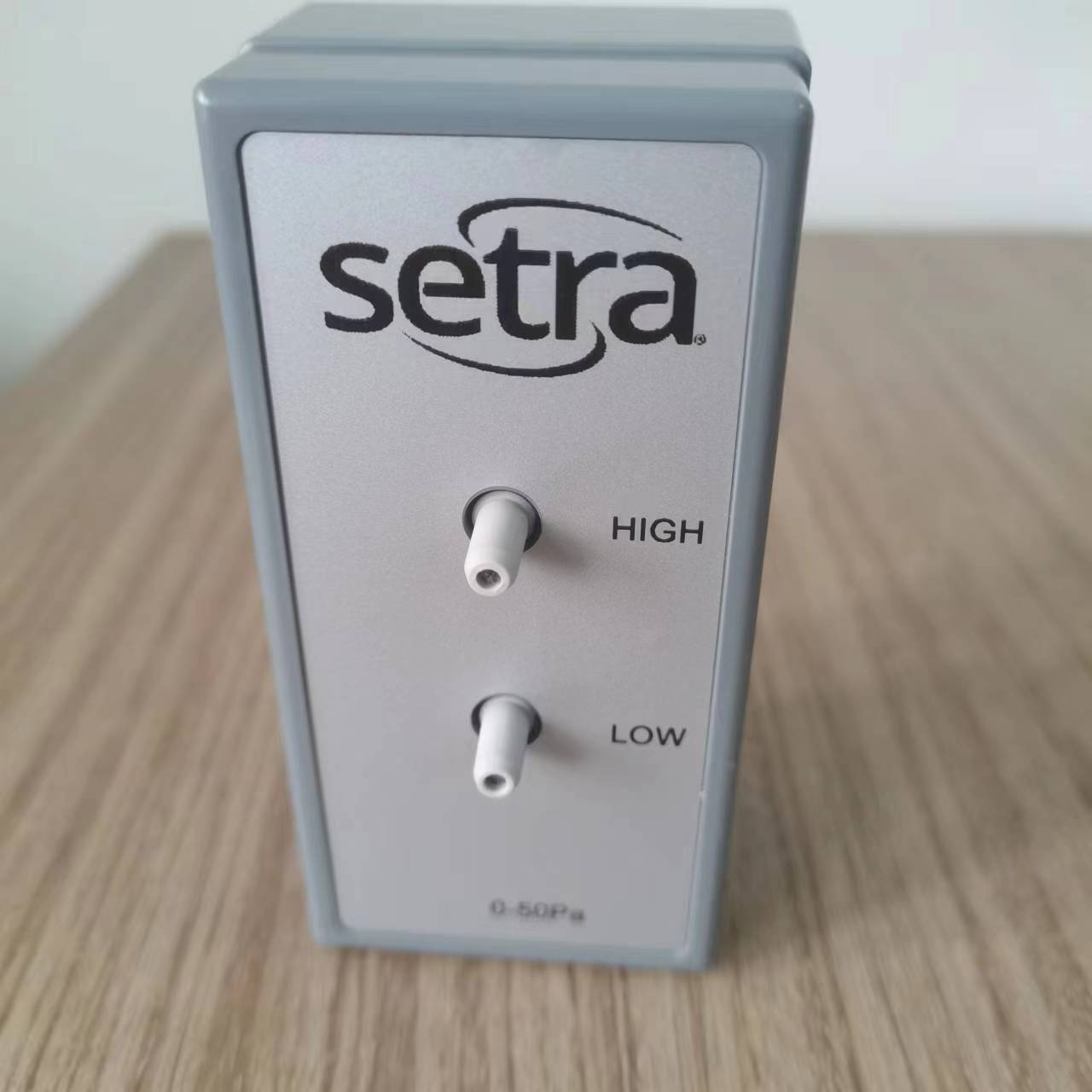

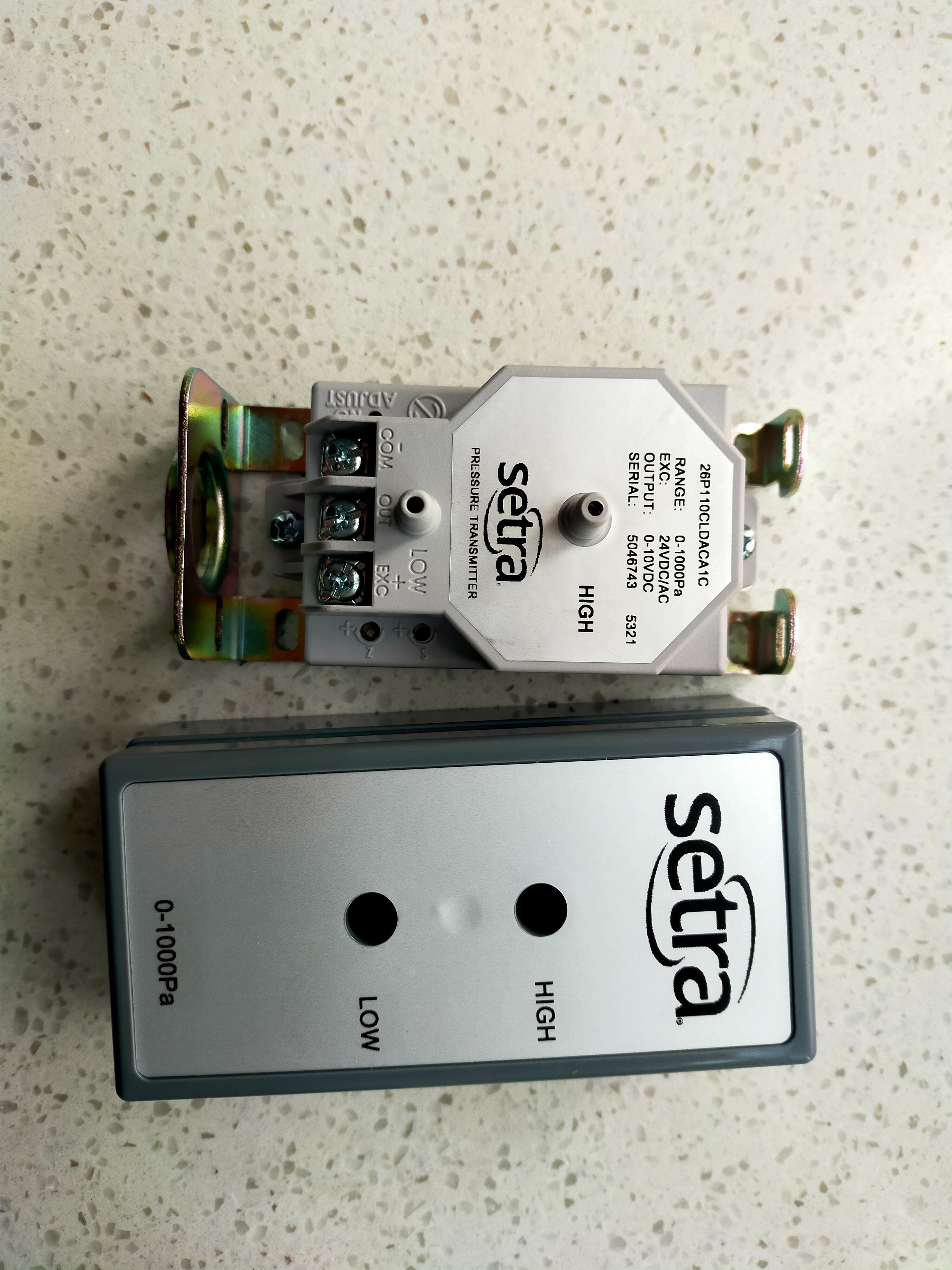

SETRA西特26P差压传感器变送器是一款经济型的差压传感器，外形和SETRA西特265差压传感器一样精度±1%FS，setra西特26P系列微差压变送器的量程从 0~50Pa 到 0~5Kpa。在常温的环境下，精度为满量程的

±1%。在 -18℃ ~+65℃的温度范围内，温度影响小于 ±0.06％ FS/℃。Model 26P 系列微

差压变送器利用先进的全不锈钢弹性膜片技术，由不锈钢膜片与固定电极构成一个可变电容，

当压力变化时，电容值也发生变化。Setra 独特的检测电路将电容值的变化转换为线性直流

电信号。弹性膜片可承受 70KPa 过压（ 正向 / 负向均可） 而不会损坏。

此传感器 / 变送器已进行了温度补偿，从而提高了温度性能和长期稳定性。

SETRA西特26P系列差压传感器常用型号大全

26P1005WDABA1C,26P1005WDABA1C-QF,26P1005WDABT1G

26P1025LB11A1C,26P1025LB11A1G,26P1025LB11T1G,

26P1025LBABT1G,26P1025LBACA1C,26P1025LBACA1G

26P1025LBACT1C,26P1025LBACT1G,26P1050LB11A1C

26P1050LB11A1G,26P1050LBACA1C,26P1050LBACA1G

26P1050LBACT1C,26P1050LD11A1C,26P1050LD11A1G

26P1050LD11T1C,26P1050LDACA1C,26P1050LDACA1G

26P1100LB11A1C,26P1100LB11A1G,26P1100LB11T1C

26P1100LB11T1G,26P1100LBACA1C,26P1100LBACA1G

26P1100LBACT1C,26P1100LBACT1G,26P1100LD11A1C

26P1100LD11A1G,26P1100LD11T1G,26P1100LDACA1C

26P1100LDACA1G,26P110CLB11A1C,26P110CLB11A1G

26P110CLD11A1C,26P110CLD11A1D,26P110CLD11A1G

26P110CLD11T1C,26P110CLDACA1C,26P110CLDACA1G

26P110CLDACT1C,26P110KLDABT1E,26P1150LD11A1C

26P115CLB11A1C,26P115CLD11A1C,26P115CLD11A1G

26P115CLD11T1G,26P115CLDACA1C,26P1200LD11A1C

26P120CLB11T1G,26P120CLDACA1C,26P120CLDACA1G

26P1250LB11A1C,26P1250LB11A1G,26P1250LB11T1D

26P1250LBABA1C,26P1250LD11A1C,26P1250LD11A1G

26P1250LD11T1C,26P1250LDACA1C,26P1250LDACA1G

26P1250LDACT1G,26P125CLB11A1C,26P125CLD11A1C

26P125CLD11A1G,26P125CLDACA1C,26P125CLDACA1G

26P125CLDACT1C,26P12R5WDABA1C-QF,26P12R5WDACA1C

26P130CLB11A1C,26P130CLD11A1C,26P1500LB11A1C

26P1500LB11A1G,26P1500LD11A1C,26P1500LD11A1D

26P1500LD11A1G,26P1500LD11T1G,26P1500LDABA1H

26P1500LDACA1C,26P1500LDACA1G,26P150CLD11A1C

26P150CLD11A1G,26P150CLDACA1C,26P160CLD11A1C

26P1625LD11T1CHD,26P170CLD11T1C,26P1KWY420M

26P1R25WD11T1C,26P1Z09LB11A1G,26P1Z09LD11T1CHD

精度 ：1%

温度影响 *

补偿范围 -18~+65℃（ 0~+150oF）

零点 / 满程偏移 %FS/℃（ oF） ±0.06（ ±0.033）

蕞大静压 10PSI

蕞大过载压力 10PSI（ 正负双向）

预热漂移 ±0.1%FS

电气数据 ( 电流输出型 )

电路 2 线

输出 * 4~20mA**

零压时的双向输出 12mA

电气负载 0~800Ω
